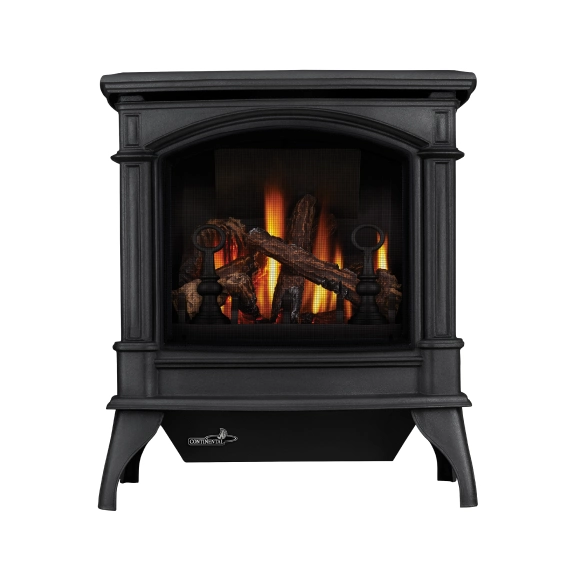

Cast Iron Elegance
The elegant European design offers old world charm through via cast iron construction that provides a lifetime of enjoyable comfort and style
Variable Heat Range
Control the exact amount of heat needed up to 35,000 BTU’s
Electronic Ignition
Fuel-saving electronic ignition with battery back-up so you can stay problem-free when power-free
FEATURES
- 394 sq. in. viewing area
- 100% SAFE GUARD™ automatic gas shut off for your peace of mind
- Large viewing area
- Elegant arched front and a sleek, sophisticated outer casting design
- Exclusive PHAZER™ log set with traditional glowing charcoal embers
- Optional remote
- Optional Natural Draft Adapter Kit allowing installation into existing chimneys
SPECIFICATIONS
CDVS600
| BTU’s (Input) | 35,000 |
| Venting | Top* / Rear 4” / 7” |
| Glass Type | Ceramic |
| Mobile Home Certified | Yes |
| OVERALL UNIT | |||
|---|---|---|---|
| A | B | C | D |
| 30 1/2” | 37” | 27” | 19 1/2 |
| GLASS VIEWING AREA | |
|---|---|
| Height | 18 3/4” |
| Width | 21” |
| MAXIMUM CLEARANCES | |
|---|---|
| Corner | 2” |
| Rear | 6” |
| Side | 6” |
*Finishing flange depth (The finishing flange defines the perimeter of the fireplace opening). Framing or finishing materials must NEVER encroach inside the finishing flange.
